Designator sasaran laser 60mj dengan LRF

Penyinaran jenis ini menggunakan reka bentuk sumber cahaya yang unik untuk mencapai sehingga 60mj output laser dalam saiz struktur yang sangat kecil, dan lebar nadi adalah lebih daripada 10Ns, dan sudut perbezaan laser awal adalah 50% lebih kecil daripada produk konvensional. Irradiator menggunakan reka bentuk apertur tunggal pelepasan dan penerimaan, struktur padat, boleh digunakan dalam hangar fotoelektrik, penyinaran kenderaan dan senario aplikasi lain.

Hantar Pertanyaan

Penerangan Produk

Main functions of irradiator:

Target irradiation guidance
Target distance test
Encode laser output
Overvoltage, overcurrent and overtemperature protection, power anti-reverse function
Differential signal external trigger function

Main technical parameters

Main parameters of laser light source
Laser wavelength	1064nm±1nm
Pumping mode	Semiconductor pumping
Repetition frequencyOutput energy	1~20Hz≥60mj@20Hz
Irradiation distance	≥4km
Pulse width	10ns~20ns
Beam divergence Angle	≤0.3mrad
Axial stability	<0.1mrad
Pulse energy stability	<5% (RMS, within one irradiation cycle)
Working time @20hz	work for 1 minute, rest for 0.5 minutes; work for 8 cycles, rest for 15 minutes before continuing to work
Power supply	DC 28V±4V
Power	standby power consumption is less than 20W; peak power consumption is less than 120W;
Coding type	Built-in precise frequency coding, variable interval code, support pseudo random coding
Coding accuracy	≯1.5μs@20Hz
Ranging system indicators
Ranging mode	Pulse ranging
Range frequency	1-5Hz
Max Range	≥8Km (2.3m*2.3m NATO target, Reflectivity0.3, Visibility>25km, )
Mini Range	≤500m
Ranging accuracy	±5m
Accuracy rate	≥98%
Interfaces and structures

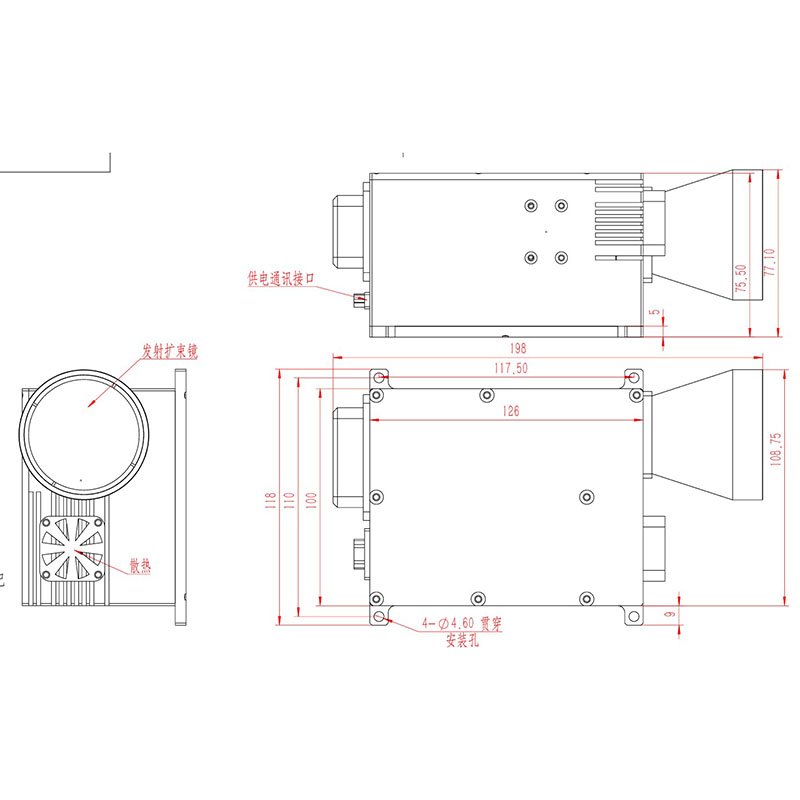

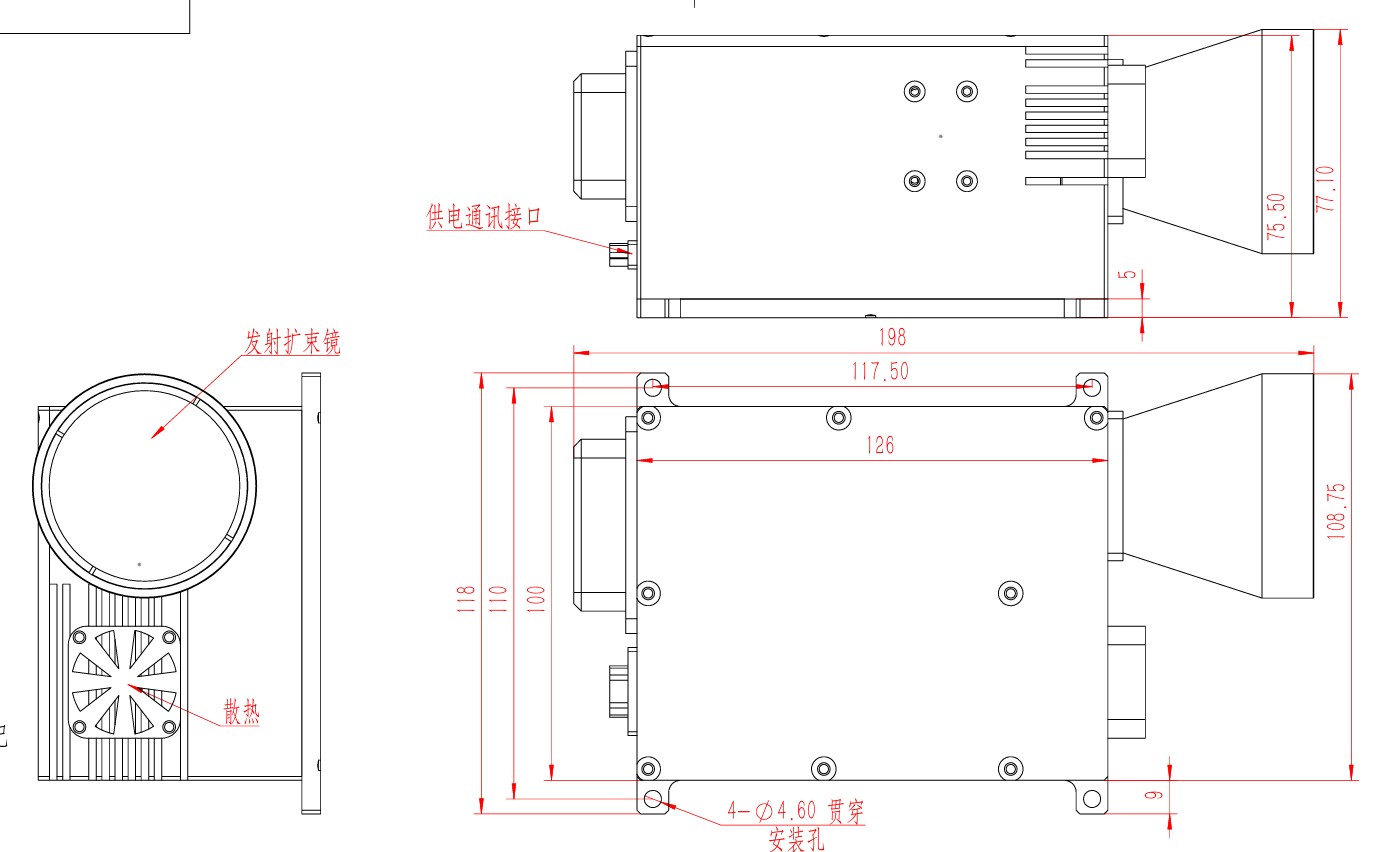

Module Size	≤198X109X75.5mm
Weight	≤1.4kg
Cooling mode	Air cooling
The RS422 serial port and external synchronous input are 422 levels, and the external synchronous illumination is 0-5V
Environmental suitability
Working temperature	-40℃~ +60℃
Storage temperature	-50℃~+75℃
